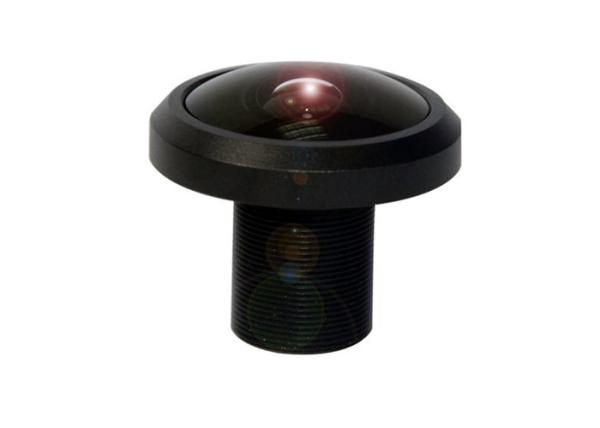

1/2.3" 1.55mm 12Megapixel M12x0.5 mount 195degree Fisheye Lens for IMX172/IMX178/IMX185/OV21840/OV23850

1/2.3" 1.55mm F2.0 5Megapixel M12x0.5 mount 195degrees IR Fisheye Lens for 1/2.3" 1/2.5" 1/2.7" sensors, 1.55mm S-mount panoramic camera fisheye lens for IMX172/IMX178/IMX185/OV21840/OV23850 sensors

MODEL 1230155MP(B)
IMAGE FORMAT 1/2.3"
FOCAL LENGTH(mm) 1.55
MAX IMAGE CIRCLE Φ4.7mm @195°
F.O.V. 1/2.3": 195°(D)*195°(H)*195°(V); 1/2.5": 195°(D)*195°(H)*172°(V); 1/2.7": 195°(D)*195°(H)*157°(V)
RESOLUTION 12MP
DISTORTION -98%
APERTURE F2.0 ±0.15
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.15
B.F.L.(mm) 4.63
M.B.F.(mm) 3.95
DIMENSION(mm) Φ26x23.16
IR Collection YES

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
