1/2.3" 1.57mm F2.2 10Megapixel M12x0.5 mount 180degrees IR Fisheye Lens for IMX172/MT9J003/MT9P006/AR0330 sensors, 1.57mm S-mount panoramic camera 4K fisheye lens

MODEL 1230157MP
IMAGE FORMAT 1/2.3"
FOCAL LENGTH(mm) 1.57
MAX IMAGE CIRCLE Φ4.1mm
F.O.V. 180°(D)*180°(H)*180°(V)
RESOLUTION 10MP
APERTURE F2.2
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.15
M.B.F.(mm) 5.5 (in air)

T.T.L.(mm) 29.6 (in air)
DIMENSION(mm) Φ24x24.1

OPERATING TEMPERATURE -20℃～+60℃

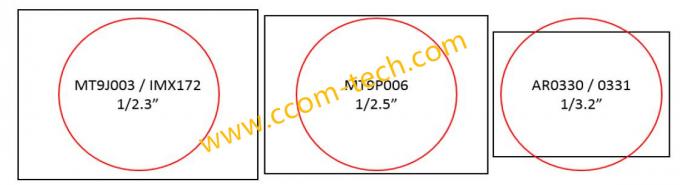

Effect on IMX172:

Effect on MT9J003/MT9P006/AR0330:

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
