1/3" 1.39mm F1.8/F2.0 5Megapixel M12*0.5 mount wide angle 185degree fisheye lens for panoramic cameras

MODEL 130139MP-A
IMAGE FORMAT 1/3" CCD/CMOS
FOCAL LENGTH(mm) 1.39 ±5%
F.O.V. 185°(D)x185°(H)x185°(V)
RESOLUTION 5MP
APERTURE 2.0 ±5%
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.1
B.F.L.(mm) 4.05 ±5% (in air)
F.B.L.(mm) 3.50 ±5%

CONSTRUCTION 6G
DIMENSION(mm) Φ17x15.9

MODEL 130139MP-B
IMAGE FORMAT 1/3" CCD/CMOS
FOCAL LENGTH(mm) 1.39 ±5%
F.O.V. 185°(D)x185°(H)x185°(V)
RESOLUTION 5MP
APERTURE 2.0 ±5%
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.1
B.F.L.(mm) 4.05 ±5% (in air)
F.B.L.(mm) 3.50 ±5%

CONSTRUCTION 6G
DIMENSION(mm) Φ20x15.9

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

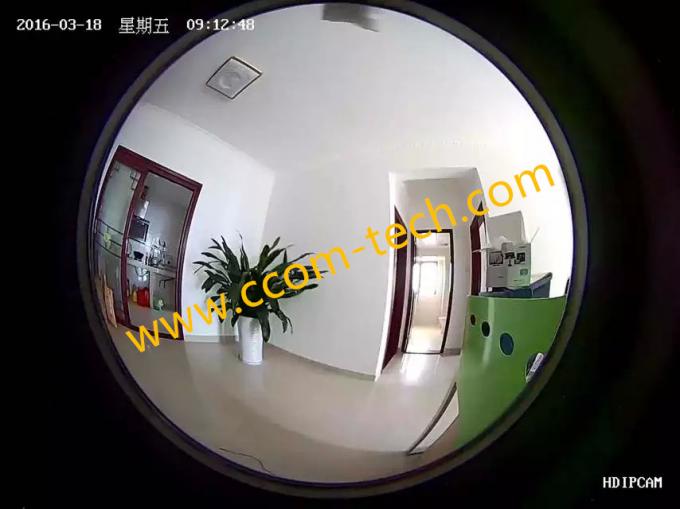

EFFECT ON 1/3" SENSOR:

We are professional supplier of camera lenses and keeping providing innovative optical solutions and products to the market. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, etc.

We Keep providing new lens models for high-definition cameras in many applications, including Day& Night security, IP surveillance, Panoramic security, Video conferencing, Motion capture, Recognition, Sports, Machine Vision / FA, Automotive, Medical, etc.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
