High Definition Wide-Angle Lens

● Multi-mega pixels up to 5MP
● IR-collection for Day & Night surveillance

● Super wide-angle with HFOV up to 138°

● Glass elements and metal housing
● IR cut option
● Mount option: CS/M12x0.5

1/1.8" 2.95mm F2.0 1080P 5Megapixel CS/S-mount 178degrees super wide angle Lens, able to match IMX226 sensor

Model 118295MP
IMAGE FORMAT 1/1.8"
SENSOR CCD/CMOS
FOCAL LENGTH 2.95mm
RESOLUTION MP
F.O.V.(D*H*V) 178°*138°*104°
APERTURE F2.0
EFFECTIVE APERTURE Φ20.3mm(front), Φ7.5mm(rear)
IRIS Fixed
M.O.D. 0.2m
MOUNT M12XP0.5 - 6g
B.F.L. 7.85mm
LENS CONSTRUCTURE 8-6
DIMENSION Φ25*26mm

Model 118295MP-CS
IMAGE FORMAT 1/1.8"
SENSOR CCD/CMOS
FOCAL LENGTH 2.95mm
RESOLUTION MP
F.O.V.(D*H*V) 178°*138°*104°
APERTURE F2.0
DISTORTION 97%
EFFECTIVE APERTURE Φ20.3mm(front), Φ7.5mm(rear)
IRIS Fixed
M.O.D. 0.15m
MOUNT CS
B.F.L. 7.85mm
LENS CONSTRUCTURE 8-6
DIMENSION Φ28*21.2mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS mount available

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

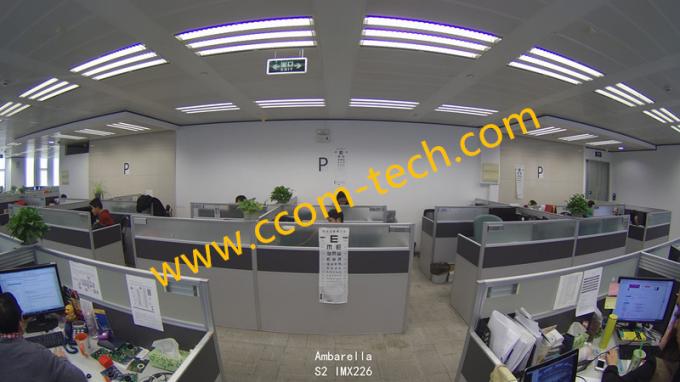

Effect on IMX226(not original images, just for reference):
