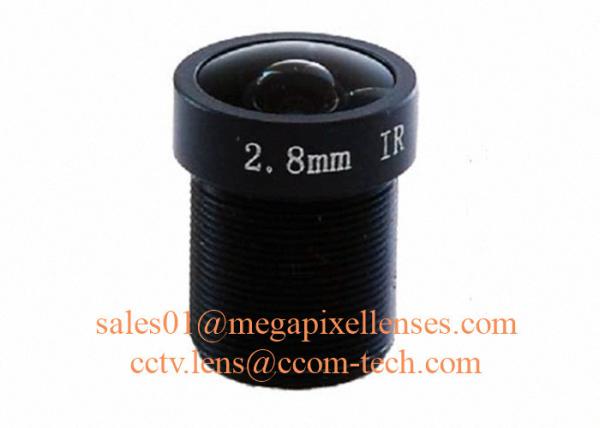

1/2.7" 2.8mm F2.0 3Megapixel M12x0.5 mount 130degree IR board lens for security camera

1/2.7" 2.8mm F2.0 3Megapixel M12x0.5 mount 130degree wide angle fixed focal lens, 2.8mm M12 mount wide angle cctv lens for security cameras, M12/CS mount option

Model 12702820MP
IMAGE FORMAT 1/2.7"
SENSOR 1/2.7” & 1/3” CCD/CMOS

MAX IMAGE CIRCLE Φ6.6mm
FOCAL LENGTH 2.8mm
F.O.V(D*H*V) 1/2.7”: 130°×104°×78°; 1/3”: 120°×96°×72°; 1/4": 89.8°×71.8°×53.9°
RESOLUTION 3MP
APERTURE F2.0
OPTICAL DISTORTION <-50%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m

B.F.L. 6.1mm
M.B.F. 5.5mm
T.T.L. 23.2mm
DIMENSION Φ14*16.9mm
IR COLLECTION YES

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
