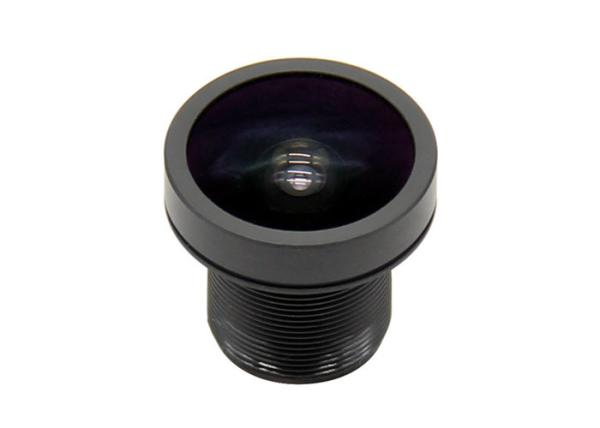

1/2.3" 2.75mm F2.213Megapixel S-mount M12x0.5 mount 160degree wide-angle lens for sport DV/action camera, 2.75mm M12 lens for OV9810

MODEL 1230275MPF-D1
SENSOR SIZE 1/2.33” OV9810
FOCAL LENGTH(EFL) 2.75mm
F.O.V.(D*H*V) 160°*118°*87°
RESOLUTION 13MP
APERTURE F2.2
TV DISTORTION <-16%
MOUNT M12XP0.5
B.F.L. 5.59mm
T.T.L. 22.1mm
R.I. >95%
CRA <12.5°
LENS CONSTRUCTURE 6G+IR (650nm)
OPERATION TEMPERATURE -40℃~+85℃

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
