1/2.3" 3.8mm F2.8 16MP Megapixel M12x0.5 mount Low-Distortion Board Lens for IMX117/IMX226, Drone lens

1/2.3" 3.8mm F2.8 16Megapixel S Mount M12x0.5 mount Low-Distortion Board Lens for aerial cameras action camers drones UAVs, 3.8mm non-distortion lens for IMX117/IMX226

MODEL 123038MPF
SENSOR SIZE 1/2.3”
WAVELENGTH 400-700nm
FOCAL LENGTH(EFL) 3.8mm
F.O.V.(D*H*V) 95°*82°*65°
RESOLUTION 16MP
APERTURE F2.8
TV DISTORTION <2.8%
MOUNT M12XP0.5
B.F.L. 5.59mm
F.B.L. 2.49mm
T.T.L. 25.33mm

C.R.A. <16°
LENS CONSTRUCTURE 8E+IR
DIMENSION Φ20*22.81mm

MODEL 123038MPF-B
SENSOR SIZE 1/2.3”
WAVELENGTH 400-700nm
FOCAL LENGTH(EFL) 3.8mm
F.O.V.(D*H*V) 95°*82°*65°
RESOLUTION 16MP
APERTURE F2.8
TV DISTORTION <2.8%
MOUNT M12XP0.5
B.F.L. 5.59mm
F.B.L. 2.49mm
T.T.L. 25.33mm

C.R.A. <16°
LENS CONSTRUCTURE 8E+IR
DIMENSION Φ17.5*21.05mm

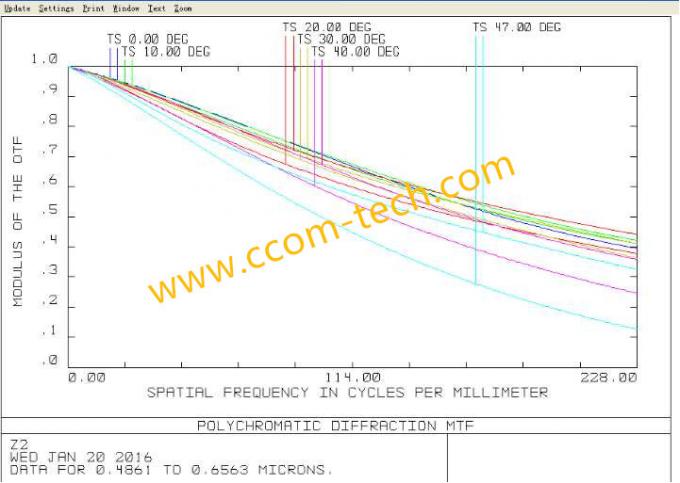

123038MPF & 123038MPF-B MTF datas:

1/2.3" 3.8mm 16Megapixel S Mount M12 Low-Distortion Board Lens for Drones IMX117

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- This lens is a direct replacement for most action cameras like the GoPro Hero 4, SJCAM, XIAOMI YI and others.

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

1/2.3" 3.8mm F2.8 16MP Megapixel M12x0.5 mount Low-Distortion Board Lens for IMX117/IMX226, Drone lens
