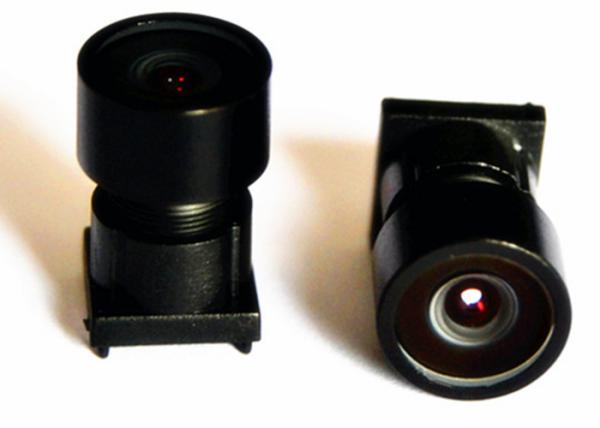

1/3" 3.0mm F2.4 3Megapixel M7*0.35 Mount 150degree Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror, 3mm M7 lens for AR0330/OV4689/OV5653 etc.

Model 13030MPF-M7
IMAGE FORMAT 1/3"

SENSOR SIZE 1/3" ~ 1/4" 3.5MP~5MP CMOS/CCD (AR0330/OV5653)
MAX IMAGE CIRCLE Ø 6.23mm
FOCAL LENGTH 3.0mm
F.O.V (D*H*V) AR0330: 150.2°*108.4°*67°
DISTORTION H -15.5%, V -40%
APERTURE F2.4
RESOLUTION 5MP
MOUNT M7xP0.35
IRIS Fixed
B.F.L. 5.44mm
F.B.L. 2.60mm
T.T.L. 16.06mm
DIMENSION Φ10×(13.46±0.2)mm
LENS COMPOMENT 5G+IR

R.I. >81%
CUT FREQUENCY AT 50% 640±8nm

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

We are professional supplier of camera lenses and keeping providing innovative optical solutions and products to the market. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, etc.

We Keep providing new lens models for high-definition cameras in many applications, including Day& Night security, IP surveillance, Panoramic security, Video conferencing, Motion capture, Recognition, Sports, Machine Vision / FA, Automotive, Medical, etc.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
