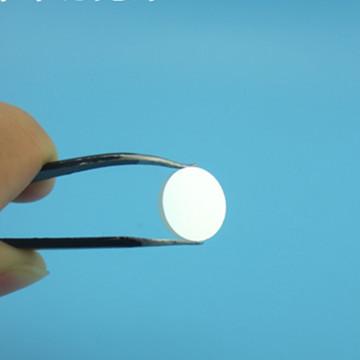

Red 650nm narrow band IR pass filter, square or round 650nm IR filter

Model: IR650NB(D8x1)

Diameter: 8mm

Thickness: 1mm

Center wavelength: 650nm±2nm

Deviation of the center wavelength: 10nm

Half bandwidth: 25nm

Peak transmission rate: 90%

Cut-off depth: <1%

Color and Material: white mirror glass

650nm red band pass filter, 650nm narrow band pass filter, dimension 6.5x6.5x1.0mm, special filter for laser barcode engine

Model: IR650NB(6.5)

Dimension: 6.5x6.5x1.0mm

Center wavelength: 650nm±10nm

Deviation of the center wavelength: 10nm

Half bandwidth: 50nm

Peak transmission rate: 92%

Cut-off depth: <1%

Color and Material: red mirror glass

Tips:

- Square/Round shape option

- Custom size available

- For more IR filters, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
