1/2.7" 3.3mm F2.2 Megapixel M12x0.5 mount non distortion lens for 1/2.7" 1/3" 1/4" sensors, lens for OV2710/AR0330

MODEL 127033MPF
SENSOR SIZE 1/2.7”
FOCAL LENGTH(EFL) 3.3mm
F.O.V.(DxHxV) 1/2.7" OV2710 90°x82°x52°, 1/3" AR0330 86°x78°x49°
RESOLUTION MP
APERTURE F2.2
TV DISTORTION <-1%
MOUNT M12xP0.5
F.B.L. 4.73mm
T.T.L. 15.7mm
C.R.A. 9°
R.1. OV2710: 45%, AR0330: 50%
LENS CONSTRUCTURE 2G4P+IR-CUT
IR CUT T=50%@650±10nm

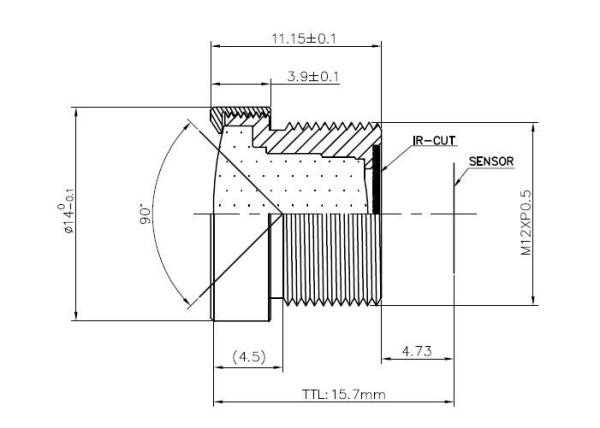

DIMENSION Φ14x11.15mm

Tips:

- ***MP: without IR-Cut filter

- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
